Antenna Test Facility


  • NEAR FIELD TEST RANGE

    • It is the near field measurement system which is a unique & indigenously developed facility for testing of antenna (especially radars) by using pulsed FMCW /Chirped pulse.

    The system is capable of antenna pattern measurement for radar systems, and can be a generalized one with NF measurement systems upgraded with Chirp / FMCW source.


  • COMPACT ANTENNA TEST RANGE

    • Technical Features

      • Indoor automated far field measurements using software
      Multi-channel, multi-frequency measurements for dual polarisation
      Advanced Antenna Pattern Correction (AAPC)
      High dynamic range
      Data acquisition, processing, analysis and presentation in various formats

    • Range Capabilities

      • Radiation Pattern (Co and Cross for Amplitude & Phase)
      Directivity and Gain
      Polarization
      Precise bore-sight determination
      Return Loss

    • Major Specifications

      • Frequency bands : 1.10 to 40GHz, 50 -110 GHz & 167 – 200 GHz
      Quiet Zone Size : 5.5 m x 5.0 m x 8.0 m (W x H x D)
      Reflectivity : less than - 55 dB

    • Measurement Accuracies (1.1- 40GHz)

      • Gain measurement : ± 0.25 dB
      Cross-polarization measurement @ : -30 dB ± 1.0 dB
      Angular measurement : ± 0.014º

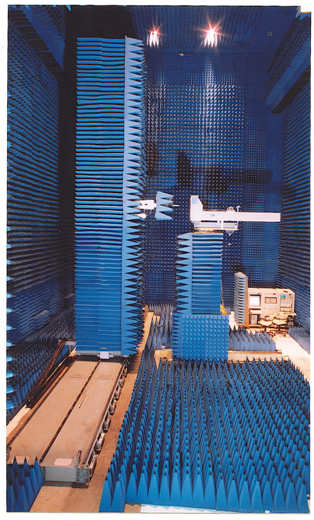

  • PLANAR NEAR-FIELD ANTENNA TEST RANGE

    • Technical Features

      • Indoor fully automated measurements
      Near-Field Scan Types : Planar and Cylindrical
      Maximum Scan Area : 9M x 6M
      Microwave Holography
      Data acquisition, processing, analysis and presentation in various formats

    • Range Capabilities

      • Radiation Pattern : Co and Cross Polarization
      Directivity and Gain
      Beam Pointing and Polarization Verification
      Fault Localization in Arrays
      Microwave Holographic Back-projection (Amplitude and Phase)

    • Major Specifications

      • Frequency Range : 1-20GHz (Upgradable to 60GHz)
      Reflectivity : less than -50dB

    • Measurement Accuracies (1.1- 40GHz)

      • Gain measurement : 0.24 dB (RMS)
      Sidelobe Measurement (@ -40 dB) : 0.76 dB
      Beam Pointing : 77µRad


  • ANECHOIC CHAMBER ANTENNA TEST RANGE

    • Technical Features

      • Indoor far field measurements using automated system
      High speed multi-frequency measurements
      Multi-channel measurement
      High dynamic range
      Data acquisition, processing, analysis and presentation in various formats

    • Range Capabilities

      • Radiation Pattern (Co and Cross for Amplitude & Phase)
      Raster Scan data acquisition for contour performance
      Directivity and Gain
      Polarization
      Return Loss

    • Major Specifications

      • Frequency band : 1.0 to 60 GHz
      Range Distance : 6.0 m
      Quiet Zone : 1.0 Cubic m
      Reflectivity : less than - 45 dB
      Dynamic Range : 90 dB
      Cross polarization : -40 db

    • Measurement Accuracies (1.1- 40GHz)

      • Amplitude : ±0.05 dB /10 dB over full dynamic range
      Phase : ± 0.4º /10 dB over full dynamic range
      Phase : ± 0.4º /10 dB over


If you have any test facility requirements or any subsystem to be tested at SAC facility, kindly fill up the form and email to "[email protected]"
